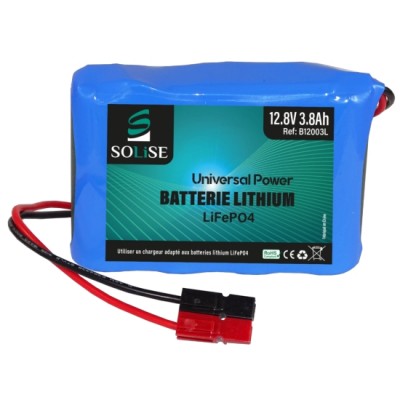

Solise 12V 3.8Ah LiFePO4 Lithium Battery
Max. discharge current : 12A
Dimensions : 107(L)x78(W)x27(H)mm
Weight : 380g
Solise 12V 3.8Ah LiFePO4 Lithium Battery – Built-in BMS.
The Solise 12V 3.8Ah LiFePO4 lithium battery is a direct replacement for lead-acid, gel or AGM batteries. No modification is required. Thanks to LiFePO4 technology, it offers a longer lifespan, reduced weight and excellent reliability. Learn more about lithium technology.
Solise lithium batteries are high-performance, compact, lightweight and maintenance-free. They are an ideal solution for equipment requiring a reliable and durable 12V power supply. Thanks to their advanced design, they are suitable for a wide range of applications: leisure equipment, medical devices, security systems and more.
The Solise 12V 3.8Ah LiFePO4 lithium battery is particularly suitable for applications requiring a compact and reliable power source. It provides a stable voltage throughout the discharge cycle, ensuring optimal performance of your equipment.
With a low self-discharge rate (<3% per month), Solise lithium batteries can be stored for long periods without performance loss. Unlike lead-acid or AGM batteries, no maintenance is required. This 12V 3.8Ah LiFePO4 lithium battery is a modern and durable solution to replace your existing batteries.
TECHNICAL SPECIFICATIONS – 12V 3.8Ah LiFePO4 LITHIUM BATTERY
Nominal voltage: 12.8V
Capacity: 3.8Ah
Energy: 48Wh
Charge voltage: 14.4V
Standard charge current: 1A
Fast charge current: 2A
Continuous discharge current: 6A
Max discharge current: 8A (1 min)
Operating temperature: -20°C to 60°C
Charging temperature: 0°C to 45°C
Cycle life: 2,000 cycles
Dimensions: 107(L) x 78(W) x 27(H) mm
Weight: 380g
BMS PROTECTION – 12V 3.8Ah LiFePO4 BATTERY
Overcharge voltage: 14.9V
Minimum discharge voltage: 10V
The built-in BMS provides protection against short circuits and ensures cell balancing during charging.
CONNECTIVITY
Connection is made using a Torberry cable with an Anderson PP30 connector (ref. K005G) (not included).
STANDARDS
Certifications: RoHS | CE | UN38.3
Warranty: 3 years
RECOMMENDATIONS FOR USING LITHIUM SOLISE BATTERIES
To ensure optimal, safe performance and long life for your SOLISE lithium batteries, we recommend that you follow these guidelines :
USE AND RECHARGING
- Suitable charger : Use a charger specifically designed for lithium batteries to optimize recharging.
- Prolonged storage : In the event of prolonged storage, recharge after 18 months.
- Complete discharge : If the battery is completely discharged until the BMS (Battery Management System) switches off, it is crucial to recharge it within 24 hours.
- Quality connection : Make sure the battery connection is of good quality to avoid any operating problems.
PRECAUTIONS FOR USE
- Do not open : Do not attempt to open the battery.
- Do not immerse : Do not immerse the battery in liquid.
- Do not expose to flames : Keep the battery away from sources of ignition.
- Discharge current : Do not exceed the recommended continuous discharge current.
- Recharging temperature : Do not recharge the battery at a temperature below 0°C.
- Exposure temperature : Do not leave the battery exposed to temperatures above 60°C.
RECYCLING USED BATTERIES
These products must not be thrown in the bin. SOLISE works with the Screclec organisation to take care of used batteries. You can return them to the waste collection centres so that they can be recycled appropriately.
