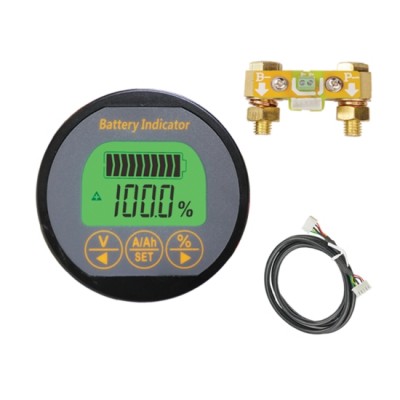

Round capacity indicator 8-70V 100A

Round capacity indicator 8-70V 100A for flush mounting.

This capacity indicator (coulombmeter) is reliable and highly accurate. It is designed to measure various parameters such as voltage, current and battery capacity.

TECHNICAL SPECIFICATIONS

Display accuracy +/-1%, 4-digit indication.

Voltage operating range : 8-70V DC
Standby consumption 0.6mA (very low)
Operating current consumption : 12mA max
Voltage shunt current: 100A
Operating temperature : -10°C to 70°C

Mounting hole diameter: 54.5mm
Dimensions : D=59x20mm
Weight : 210g

STANDARDS

Certifications : RoHS I CE

Warranty - 2 years
