24V 7Ah LiFePO4 lithium battery kit
Courses : 18 holes
Dimensions : 150(L)x95(W)x98(H)mm
Weight : 2.1kg

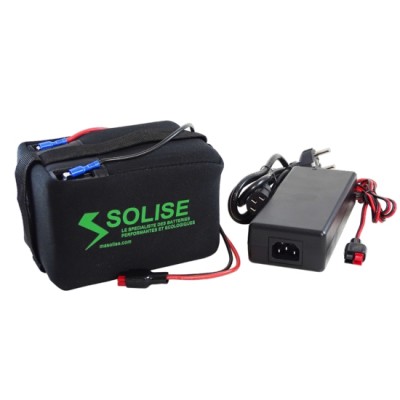

24V 7Ah Lithium Iron Phosphate (LiFePO4) battery with integrated BMS protection system - 24V 3A charger and protective bag included.
Our range of lithium batteries for golf trolleys has been designed to replace lead, gel or AGM batteries easily and without modification. Our batteries are high-performance, compact, lightweight and require no active maintenance to extend their life.
Our lithium batteries are easy to install and adaptable to a wide range of applications. Thanks to their low discharge rate (<3% per month), they can be stored for long periods without losing their performance.
With this lithium battery, you can play from 18 holes.
TECHNICAL SPECIFICATIONS
Nominal voltage : 25.6V
Capacity : 7.2Ah
Energy : 184Wh
Charging voltage : 29.2V
Standard load current : 3A
Fast load current : 7A
Continuous discharge current : 20A
Pulse discharge current : 25A (3s)
Operating temperature : -20°C to 60°C
Charging temperature : 0°C to 45°C
Service life : 2 000 cycles
Dimensions : 150(L)x95(W)x98(H)mm
Weight : 2.1kg
Connection is via a Torberry PP30 cable with 6.3mm Faston lugs (included)
BMS PROTECTION
- Overload protection 55 +/- 15A
- Protection against deep discharge <18V
- Protection against short circuits
- Cell balancing
CHARGER INCLUDED
The indicator light is green when the charger is connected. As soon as the battery is connected, the indicator turns red and returns to green when the battery is charged.
Supply voltage : 220V to 240V AC 50/60Hz
Charging voltage : 29.2V
Charging current : 3A
PROTECTIVE BAG INCLUDED
STANDARDS
Certifications : RoHS I CE I UN38.3
Warranty - 3 years
RECOMMENDATIONS FOR USING LITHIUM SOLISE BATTERIES
To ensure optimal, safe performance and long life for your SOLISE lithium batteries, we recommend that you follow these guidelines :
USE AND RECHARGING
- Suitable charger : Use a charger specifically designed for lithium batteries to optimize recharging.
- Prolonged storage : In the event of prolonged storage, recharge after 18 months.
- Complete discharge : If the battery is completely discharged until the BMS (Battery Management System) switches off, it is crucial to recharge it within 24 hours.
- Quality connection : Make sure the battery connection is of good quality to avoid any operating problems.
PRECAUTIONS FOR USE
- Do not open : Do not attempt to open the battery.
- Do not immerse : Do not immerse the battery in liquid.
- Do not expose to flames : Keep the battery away from sources of ignition.
- Discharge current : Do not exceed the recommended continuous discharge current.
- Recharging temperature : Do not recharge the battery at a temperature below 0°C.
- Exposure temperature : Do not leave the battery exposed to temperatures above 60°C.
RECYCLING USED BATTERIES
These products must not be thrown in the bin. SOLISE works with the Screclec organisation to take care of used batteries. You can return them to the waste collection centres so that they can be recycled appropriately.
