14V 13Ah NMC lithium battery kit
Course : 18 holes
Dimensions : 170(L)x115(W)x40(H)mm
Weight : 1.4kg

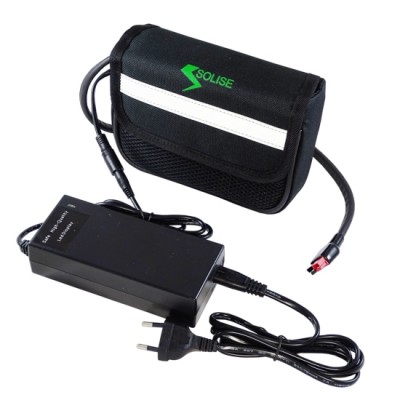

14V 13Ah Lithium Nickel Manganese Cobalt (NMC) battery with integrated BMS protection system - 14V 3A charger and protective bag included.
Our range of lithium batteries for golf trolleys has been designed to replace lead, gel or AGM batteries easily and without modification. Our batteries are high-performance, compact, lightweight and require no active maintenance to extend their life.
Our lithium batteries are easy to install and adaptable to a wide range of applications. Thanks to their low discharge rate (<3% per month), they can be stored for long periods without losing their performance.
This lithium battery allows you to play a 18-hole course.
TECHNICAL SPECIFICATIONS
Nominal voltage : 14.4V
Capacity : 13.2Ah
Energy : 190Wh
Charging voltage : 16.8V
Standard load current : 5A
Fast load current : 7A
Continuous discharge current : 25A
Pulse discharge current : 30A (3s)
Operating temperature : -20°C to 60°C
Charging temperature : 0°C to 45°C
Service life : 600 cycles
Dimensions : 170(L)x115(W)x40(H)mm
Weight : 1.4kg
Connection is via a Torberry cord with a 540mm long cable for discharging and a female jack plug for charging.
BMS PROTECTION
Overload voltage : 14.9V
Minimum discharge voltage : 10V
This device provides short-circuit protection while balancing the cells during charging.
CHARGER INCLUDED
The indicator light is green when the charger is connected. As soon as the battery is connected, the indicator turns red and then green again when the battery is charged.
Supply voltage : 100V to 240V AC 50/60Hz
Charging voltage : 16.8V
Charging current : 3A
PROTECTIVE BAG INCLUDED
STANDARDS
Certifications : RoHS I CE I UN38.3
Warranty - 3 years
RECOMMENDATIONS FOR USING LITHIUM SOLISE BATTERIES
To ensure optimal, safe performance and long life for your SOLISE lithium batteries, we recommend that you follow these guidelines :
USE AND RECHARGING
- Suitable charger : Use a charger specifically designed for lithium batteries to optimize recharging.
- Prolonged storage : In the event of prolonged storage, recharge after 18 months.
- Complete discharge : If the battery is completely discharged until the BMS (Battery Management System) switches off, it is crucial to recharge it within 24 hours.
- Quality connection : Make sure the battery connection is of good quality to avoid any operating problems.
PRECAUTIONS FOR USE
- Do not open : Do not attempt to open the battery.
- Do not immerse : Do not immerse the battery in liquid.
- Do not expose to flames : Keep the battery away from sources of ignition.
- Discharge current : Do not exceed the recommended continuous discharge current.
- Recharging temperature : Do not recharge the battery at a temperature below 0°C.
- Exposure temperature : Do not leave the battery exposed to temperatures above 60°C.
RECYCLING USED BATTERIES
These products must not be thrown in the bin. SOLISE works with the Screclec organisation to take care of used batteries. You can return them to the waste collection centres so that they can be recycled appropriately.
