Kit batterie lithium 12V 14Ah LiFePO4
Course : 18 holes
Dimensions : 150(L)x95(W)x98(H)mm
Weight : 2.1kg

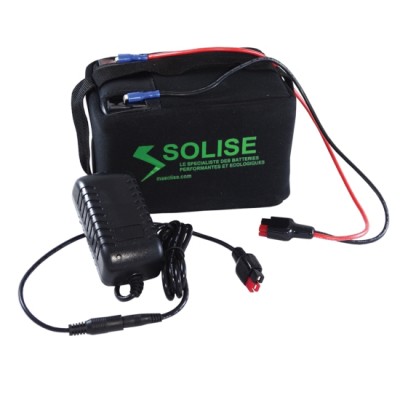

12V 14Ah Lithium Iron Phosphate (LiFePO4) battery with integrated BMS protection system - 12V 2A charger and protective bag included.
Our range of lithium batteries for golf trolleys has been designed to replace lead, gel or AGM batteries easily and without modification. Our batteries are high-performance, compact, lightweight and require no active maintenance to extend their life.
Our lithium batteries are easy to install and adaptable to a wide range of applications. Thanks to their low discharge rate (<3% per month), they can be stored for long periods without losing their performance.
With this lithium battery, you can play an 18-hole course on gently undulating terrain.
TECHNICAL SPECIFICATIONS
Nominal voltage : 12.8V
Capacity : 14Ah
Energy : 184Wh
Charging voltage : 14.6V
Standard load current : 7A
Fast load current : 14A
Continuous discharge current : 20A
Pulse discharge current : 30A (3s)
Operating temperature : -20°C à 60°C
Charging temperature : 0°C à 45°C
Service life : 600 cycles
Dimensions : 150(L)x95(W)x98(H)mm
Weight : 2.1kg
Connection is via a Torberry PP30 cable with 6.3mm Faston lugs (included)
BMS PROTECTION
Overload voltage : 14.9V
Minimum discharge voltage : 10V
This device provides short-circuit protection while balancing the cells during charging.
CHARGER INCLUDED
The indicator light is green when the charger is connected. As soon as the battery is connected, the indicator turns red and then green again when the battery is charged.
Supply voltage : 100V to 240V AC 50/60Hz
Charging voltage : 14.4V
Charging current : 2A
Charging time : 7h00
PROTECTIVE BAG INCLUDED
STANDARDS
Certifications : RoHS I CE I UN38.3
Warranty - 3 years
RECOMMENDATIONS FOR USING LITHIUM SOLISE BATTERIES
To ensure optimal, safe performance and long life for your SOLISE lithium batteries, we recommend that you follow these guidelines :
USE AND RECHARGING
- Suitable charger : Use a charger specifically designed for lithium batteries to optimize recharging.
- Prolonged storage : In the event of prolonged storage, recharge after 18 months.
- Complete discharge : If the battery is completely discharged until the BMS (Battery Management System) switches off, it is crucial to recharge it within 24 hours.
- Quality connection : Make sure the battery connection is of good quality to avoid any operating problems.
PRECAUTIONS FOR USE
- Do not open : Do not attempt to open the battery.
- Do not immerse : Do not immerse the battery in liquid.
- Do not expose to flames : Keep the battery away from sources of ignition.
- Discharge current : Do not exceed the recommended continuous discharge current.
- Recharging temperature : Do not recharge the battery at a temperature below 0°C.
- Exposure temperature : Do not leave the battery exposed to temperatures above 60°C.
RECYCLING USED BATTERIES
These products must not be thrown in the bin. SOLISE works with the Screclec organisation to take care of used batteries. You can return them to the waste collection centres so that they can be recycled appropriately.
