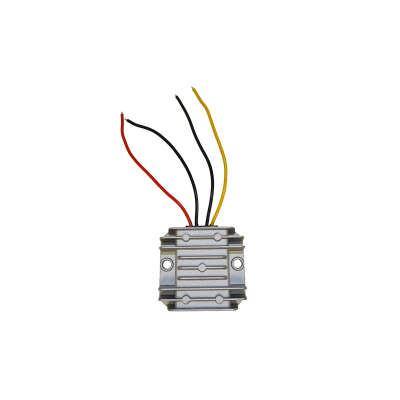

8-35V to 2-24V 5A step-down converter

Buck-type step-down converter from 8-35V non-isolated DC voltage to 2V-24V 5A.

This converter is used to obtain a stable voltage from an unstabilised voltage source.

TECHNICAL SPECIFICATIONS

Input voltage : 8V to 35Vdc
Output voltage : 2V to 24Vdc
Max output current : 5A
Converter efficiency : >85%
Operating temperature : -45°C to 60°C*
Dimensions : 65(L)x60(W)x20(H)mm

Output voltage can be adjusted using a potentiometer

*If the temperature is above 40°C, use a forced ventilation system.

STANDARDS

Certifications : RoHS I CE

Warranty - 2 years
